1.5mm Double Embossed Pillow Plate For Heat Exchange In Sterilization Ovens

1pc
MOQ
USD150-30000
Price
1.5mm Double Embossed Pillow Plate For Heat Exchange In Sterilization Ovens
Features Gallery Product Description Request A Quote
Features
Specifications
Thickness: 0.8mm, 0.9mm, 1.0mm, 1.2mm, 1.5mm, 2mm.
Application: Honeycomb Jacketed Reactor/fermenter, Plate Heat Exchanger, Evaporator, Storage Tank, Condenser
Process: Fiber Laser Welded
Keyword1: Laser Welding Dimple Pillow Plate
Keyword2: Pillow Plate Heat Exchanger
Keyword3: Steel Pillow Plate
Keyword4: Heat Exchanger Pillow Plate
Keyword5: Cooling Dimple Plate
High Light:

Double Embossed Pillow Plate

,

steel pillow plate For Heat Exchange

,

1.5mm laser welded pillow plate

Basic Infomation
Place of Origin: China
Brand Name: Hanpu
Certification: CE ISO
Model Number: 1*1m
Payment & Shipping Terms
Packaging Details: Standard Export Packing
Delivery Time: 30days
Supply Ability: 10 sets/month
Product Description

Double embossed pillow plate for the heat exchange in sterilization ovens, drying cabinets

Description

Double embossed pillow plate for the heat exchange in sterilization ovens, drying cabinets features a unique construction that sets it apart from traditional heat exchangers. It consists of two parallel plates, which are laser-welded together to form a series of interconnected channels. These channels create a highly efficient heat transfer surface, optimizing thermal conductivity and maximizing energy efficiency.



Processing

Rolled Plate → Spread → Laser welding → Embossed → Finished



Advantages

---Exceptional Heat Transfer Efficiency: The pillow plate design ensures turbulent flow and maximizes the contact area between the process fluid and the heat exchanging medium, resulting in superior heat transfer efficiency.
---Versatile Applications: Our heat exchanger is suitable for a wide range of industries, including food and beverage, pharmaceuticals, chemical processing, HVAC, refrigeration, and more.
---Compact and Space-Saving: The compact design of the pillow plate heat exchanger allows for easy installation in tight spaces, optimizing plant layout and reducing footprint requirements.



What is technical overview?


Material SS304;SS306;other
Color Nickle White
Standard DIN GB ISO JIS BA ANSI ASMI

Brand Hanpu
Length Max.12000mm
Width Max.2000mm
Thickness of two sheets
Double Embossed Pillow Plate Single Embossed Pillow Plate
Pillow Plate 1.0mm +1.0mm Pillow Plate 1.0mm+2.5mm
Pillow Plate 1.2mm+1.2mm Pillow Plate 1.2mm+4.0-10mm
Pillow Plate 1.5mm+1.5mm Pillow Plate 1.5mm+4.0-10mm

​  ​

What is picture?

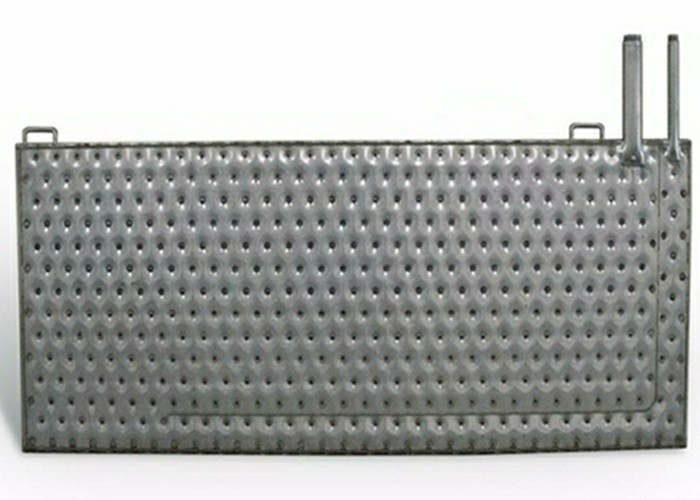

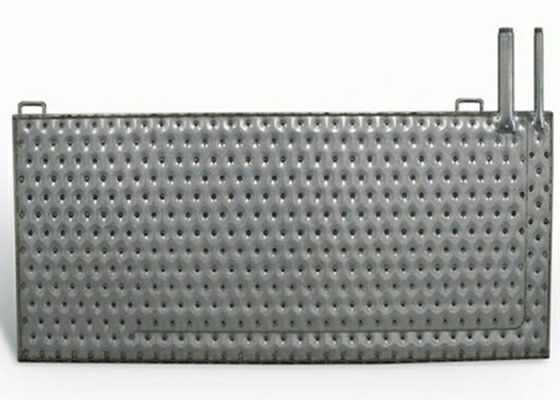

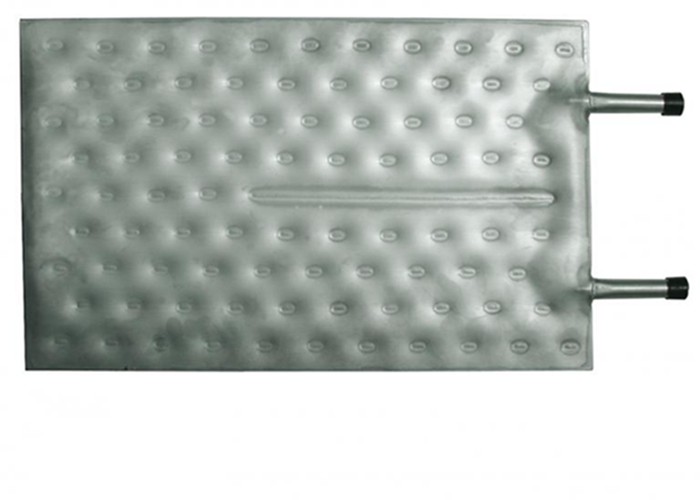

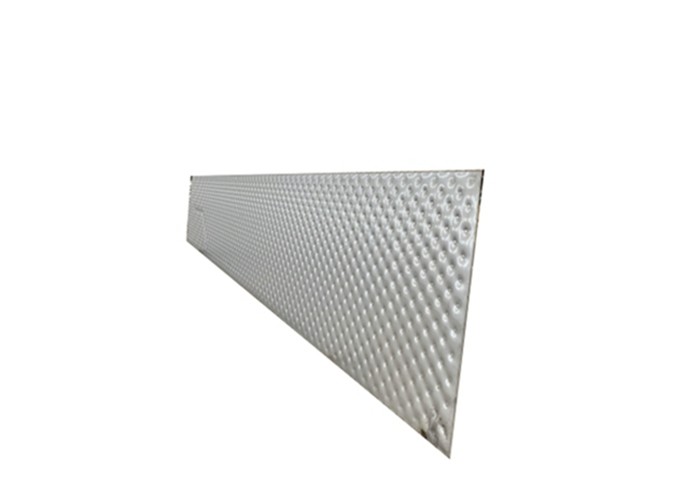

1.5mm Double Embossed Pillow Plate For Heat Exchange In Sterilization Ovens 01.5mm Double Embossed Pillow Plate For Heat Exchange In Sterilization Ovens 11.5mm Double Embossed Pillow Plate For Heat Exchange In Sterilization Ovens 21.5mm Double Embossed Pillow Plate For Heat Exchange In Sterilization Ovens 3



Who we are?

We are a top Pillow Plate heat exchanger manufacturer from China, our company's production base is located in the Huangqiao Industrial Zone of Taixing, covering an area of 300 acres. The companies involved are in the industry of new material, new energy, medicine, chemical, environmental protection, food, and beverage, etc. The website is https://www.hanputhermal.com

The company has various kinds of general (special) machinery devices including 480 sets and are the most developed working devices in the world such as: Toshiba CNC boring and milling machine imported from Japan, German Schiess CNC turning processing center, etc.

We welcome you to visit!

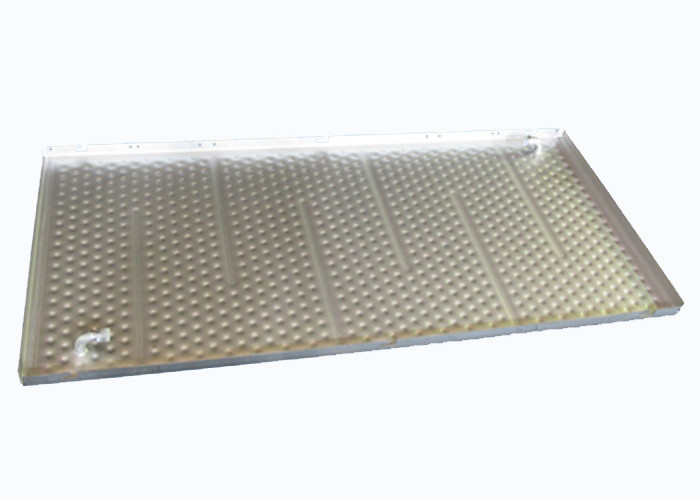

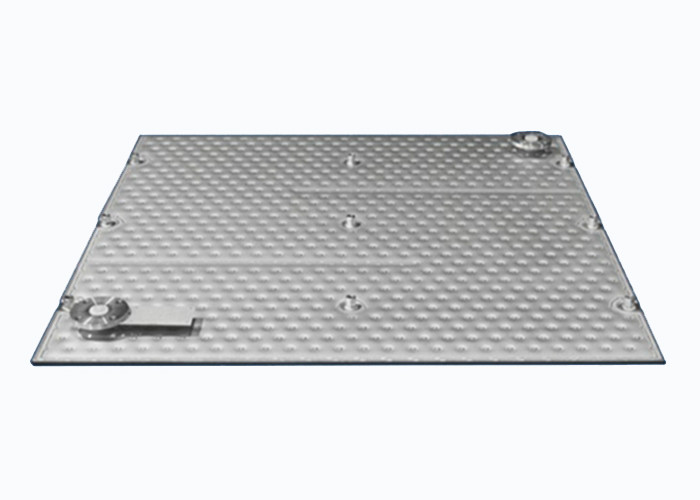

1.5mm Double Embossed Pillow Plate For Heat Exchange In Sterilization Ovens 41.5mm Double Embossed Pillow Plate For Heat Exchange In Sterilization Ovens 5



1.5mm Double Embossed Pillow Plate For Heat Exchange In Sterilization Ovens 6

Tips:



Honeycomb jacketed reactor/fermenter;plate heat exchanger;evaporator;storage tank;condenser
