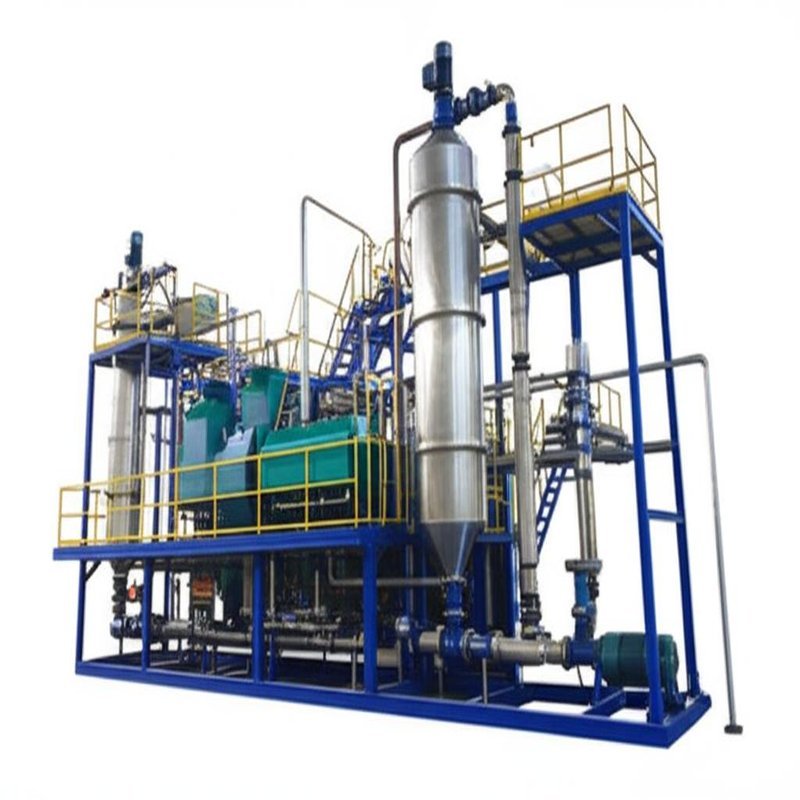

MEE Multiple Effect Evaporator For Effluent Treatment

MEE Multiple Effect Evaporator For Effluent Treatment

  • High Light

    MEE for effluent treatment

    ,

    MEE multiple effect evaporator

    ,

    multiple effect evaporator for effluent treatment

  • Key Word
    MEE Multi Effect Evaporation
  • Applicable Industries
    Chemical, Pharmaceutical, Textile, Dyeing, Breweries, Automobiles, Milk, Food Industries
  • Function
    Effluent Treatment
  • Material
    SUS304L/316L/Ti
  • Used For
    Sewage Evaporation
  • Main Parts
    Heater And Evaporator
  • Power Source
    Steam And Electricity
  • Warranty
    1 Year, 12 Months
  • Place of Origin
    Jiangsu,China
  • Brand Name
    HANPU
  • Certification
    CE,ISO9001
  • Model Number
    HP-MEE
  • Minimum Order Quantity
    1 set
  • Price
    200,000USD~20,000,000USD
  • Packaging Details
    Inner anti-collision broken plastic,outer wooden case.
  • Delivery Time
    90 days
  • Payment Terms
    T/T, L/C, D/A, D/P
  • Supply Ability
    1 Set/3 months

MEE Multiple Effect Evaporator For Effluent Treatment

MEE in Effluent Treatment for Chemical, Pharmaceutical, Textile, Dyeing, Breweries, Automobiles, Milk, Food Industries



Multi-effect Evaporator

Multi-effect evaporation is a widely-used system that utilizes secondary steam many times which is a traditional and reliable evaporation process. It can be combined with different vapor-liquid separators and crystallizers to achieve concentration and crystallization of different materials to meet various processing requirements.



Advantages

- Utilize the secondary steam reasonably, to save more energy and be more economical.

- Multiple process designs, suitable for different materials.

- Less investment compared with MVR evaporation system.



Applications

Food & beverage

Chemical

Pharmaceutical

Pesticide

Printing & dyeing

Metallurgy

Fermentation

Tobacco



What are the of Features and Advantages of the MEE system to be used in for the wastewater treatment plant?

According to the characteristics of the material and the size of the evaporation capacity, it can be designed as a single-effect or multi-effect evaporation unit, with flexible equipment combination and large operating space;

The heat transfer coefficient of the multi-effect evaporation system is relatively high, the heating time of the material is short, and the evaporation temperature is low, which can effectively reduce equipment corrosion.

The multi-effect steaming system makes full use of the latent heat of the secondary steam of the material to minimize heat emission and reduce the consumption of raw steam.

The heat exchange tube of the multi-effect evaporation system is not easy to foul, with high heat transfer efficiency, large operating flexibility, reliable operation and long operating cycle.



Characteristics

Reduction of the use of live steam by using vapour steams from the previous stage as heating medium for the following stage.

Flexible partial load operation is possible.

Suitable for various applications.



Performance Comparison for Different Evaporator

Item Single effect evaporator multi-effect evaporator TVR evaporator MVR evaporator
Energy consumption energy consumption is much higher than others, 1ton water will consume 1Ton steam in theory comparatively energy conservation Base on traditional multi-effect evaporator, one more effect added, but higher pressure steam driven needed The most energy saving technology for evaporator, but 10-40kwh power consumption
Floor space Small large large small
Energy sources steam & power, need steam pipe network and boiler steam & power, need steam pipe network and boiler steam & power, need steam pipe network and boiler, need high pressure steam. electricity, don't need pipe network, all the close-loop circulation system
Automaticity Semi automatic Full automatic operation, continuous evaporation Full automatic operation, continuous evaporation Full automatic operation, continuous evaporation



Working principle

MEE Multiple Effect Evaporator For Effluent Treatment 0

Our client site

MEE Multiple Effect Evaporator For Effluent Treatment 1

MEE Multiple Effect Evaporator For Effluent Treatment 2

MEE Multiple Effect Evaporator For Effluent Treatment 3
